Photoelectric Sensors Explained: Working, Types & Applications

Modern industries depend on automation more than ever before. From manufacturing plants and packaging facilities to logistics centers and smart buildings, machines constantly need reliable ways to detect objects without making physical contact. This is where photoelectric sensing technology has transformed industrial operations. Instead of relying on mechanical switches that wear out over time, optical sensing systems provide fast, accurate, and contactless detection for thousands of applications.

As businesses continue adopting Industry 4.0 technologies, the demand for intelligent sensing devices has grown rapidly. These sensors help improve production efficiency, reduce maintenance costs, enhance workplace safety, and support real-time monitoring across various industrial environments. Their ability to detect different materials—including metal, plastic, glass, wood, paper, and even transparent objects—makes them one of the most versatile sensing solutions available today.

Unlike traditional contact-based sensors, photoelectric sensing devices use light as their detection medium. They can identify objects regardless of their physical properties, provided the optical conditions are suitable. This non-contact operation minimizes wear and tear while delivering exceptional speed and reliability.

Another major advantage is flexibility. Whether the application requires detecting tiny electronic components on a production line or monitoring large vehicles entering a warehouse, optical sensors can be configured to meet specific operational requirements. Their adjustable sensing distances and multiple operating modes make them adaptable to almost every industrial environment.

Photoelectric Sensors have become an essential component of modern automation because they provide precise, non-contact object detection using beams of light. Their versatility, high-speed response, and dependable performance make them ideal for manufacturing, packaging, robotics, conveyor systems, warehouse automation, automotive production, pharmaceutical processing, food manufacturing, and countless other industrial applications where accuracy and efficiency are critical.

What Are Photoelectric Sensors?

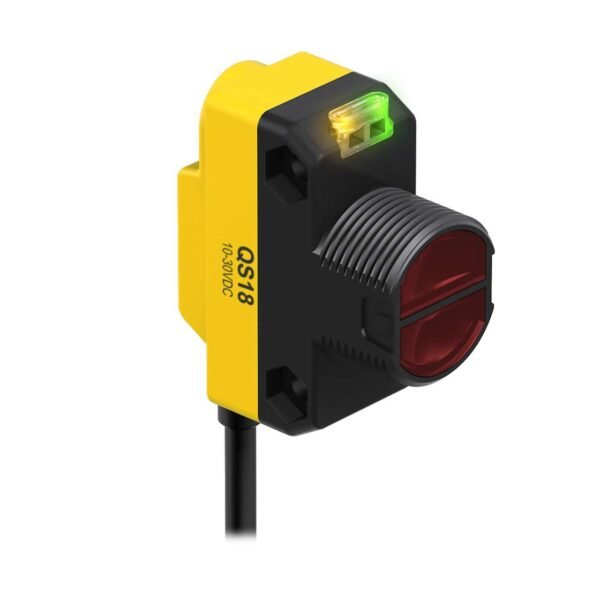

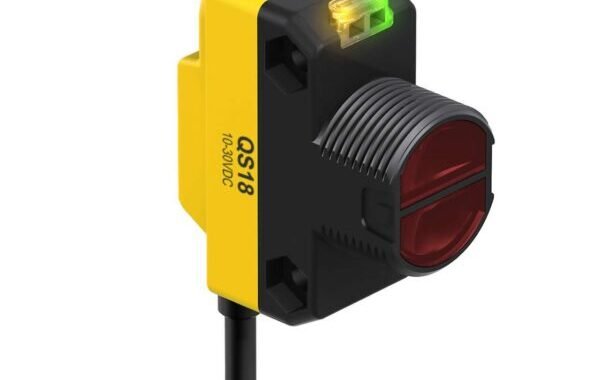

Photoelectric sensors are electronic devices designed to detect the presence, absence, or distance of an object by transmitting and receiving light. Most commonly, these sensors use infrared or visible red LED light, although laser-based versions are also widely available for high-precision applications.

Every photoelectric sensor consists of three fundamental components:

• Light emitter
• Light receiver
• Signal processing circuit

The emitter projects a beam of light toward a target or reflector. The receiver continuously monitors the returning light. Whenever an object interrupts, reflects, or alters the light beam, the sensor interprets the change and generates an electrical output signal.

Because there is no physical contact between the sensor and the object being detected, these devices offer significantly longer operational life than mechanical switches.

How Do Photoelectric Sensors Work?

The operating principle is relatively straightforward but highly effective.

Step 1: Light Emission

An LED or laser inside the sensor emits a focused beam of light.

Step 2: Beam Travels

The emitted light travels toward the target area or a dedicated reflector.

Step 3: Object Interaction

Depending on the sensor type, the object either:

• Interrupts the beam
• Reflects light back
• Alters the received intensity

Step 4: Detection

The receiver measures changes in the incoming light.

Step 5: Output Signal

The internal electronics process the received signal and switch the output ON or OFF, allowing the PLC or controller to respond accordingly.

This entire process happens within milliseconds, making photoelectric sensors ideal for high-speed production lines.

Main Components of a Photoelectric Sensor

Understanding the internal components helps explain why these sensors are so reliable.

1. Light Source

Most sensors use:

• Infrared LEDs
• Visible red LEDs
• Laser diodes

Laser versions provide greater precision and longer sensing distances.

2. Receiver

A photodiode or phototransistor captures the returning light.

3. Amplifier

The amplifier strengthens weak optical signals before processing.

4. Signal Processor

This circuit filters noise and determines whether an object has been detected.

5. Output Circuit

The sensor sends an electrical signal to external equipment.

Types of Photoelectric Sensors

Several sensor configurations exist, each designed for different industrial requirements.

1. Through-Beam Sensors

Through-beam sensors consist of separate transmitter and receiver units installed opposite one another.

Whenever an object blocks the beam, detection occurs.

Advantages

• Long sensing distance
• Extremely reliable
• Excellent for dusty environments
• Detects very small objects

Applications

• Conveyor systems
• Warehouse automation
• Vehicle detection
• Pallet counting

2. Retro-Reflective Sensors

These sensors combine the transmitter and receiver into one housing while using a reflector placed opposite the sensor.

The emitted light travels to the reflector and returns to the receiver.

An object interrupts this return beam.

Advantages

• Easier installation
• Longer sensing range
• Lower wiring costs

Applications

• Packaging machinery
• Automated doors
• Material handling
• Production lines

3. Diffuse Reflective Sensors

Diffuse sensors rely on the object itself to reflect light back toward the receiver.

No reflector is required.

Advantages

• Simple installation
• Compact design
• Cost-effective

Applications

• Product counting
• Bottle detection
• Carton inspection
• Assembly automation

4. Background Suppression Sensors

These advanced sensors distinguish between the target object and the background.

Even if reflective surfaces exist behind the object, detection remains accurate.

Advantages

• Improved accuracy
• Less false triggering
• Better object discrimination

Applications

• Robotic assembly
• Electronics manufacturing
• Precision automation

5. Laser Photoelectric Sensors

Laser sensors use tightly focused laser beams rather than standard LEDs.

They offer exceptional precision.

Advantages

• Long sensing distance
• Tiny spot size
• High accuracy

Applications

• Semiconductor manufacturing
• PCB inspection
• Medical equipment
• Precision robotics

Detection Modes

Photoelectric sensors generally operate using one of several detection principles.

Beam Interruption

An object blocks the light beam.

Direct Reflection

Light reflects directly from the object.

Polarized Reflection

Special optical filters reduce false detection caused by shiny surfaces.

Distance-Based Detection

The sensor measures reflected light intensity or triangulation to determine object position.

Advantages of Photoelectric Sensors

These sensors have become indispensable in modern automation due to numerous advantages.

Contactless Operation

No mechanical wear means longer service life.

Fast Response

Detection occurs within milliseconds.

High Accuracy

Objects of various sizes and materials can be detected reliably.

Long Detection Distance

Some industrial models exceed 50 meters.

Low Maintenance

With fewer moving parts, maintenance requirements remain minimal.

Easy Integration

Compatible with:

• PLC systems
• Industrial controllers
• Robotics
• SCADA systems
• IoT platforms

Limitations

Despite their benefits, photoelectric sensors also have certain limitations.

Dust

Heavy dust accumulation can reduce sensing performance.

Fog

Dense moisture affects light transmission.

Dirty Lenses

Contaminated optics reduce detection accuracy.

Ambient Light

Direct sunlight may interfere with some sensor models.

Transparent Objects

Glass and clear plastics require specialized sensor designs.

Industrial Applications

Photoelectric sensors support countless industries worldwide.

Manufacturing

Used for:

• Part detection
• Machine automation
• Assembly verification
• Production monitoring

Packaging

Applications include:

• Box counting
• Label verification
• Bottle positioning
• Carton inspection

Food Processing

Used for:

• Container detection
• Product sorting
• Conveyor control
• Package inspection

Pharmaceutical Industry

Sensors assist with:

• Medicine packaging
• Tablet counting
• Vial inspection
• Filling verification

Automotive Manufacturing

Common applications include:

• Robot positioning
• Component detection
• Welding automation
• Assembly line monitoring

Logistics

Warehouses depend on sensors for:

• Parcel sorting
• Conveyor tracking
• Pallet detection
• AGV navigation

Smart Buildings

Building automation uses photoelectric sensors for:

• Automatic doors
• Elevator control
• Security gates
• Occupancy monitoring

Printing Industry

Applications include:

• Paper alignment
• Sheet counting
• Print registration
• Roll monitoring

How to Choose the Right Photoelectric Sensor

Selecting the correct sensor requires evaluating several important factors.

Detection Distance

Ensure the sensor supports the required operating range.

Target Material

Consider whether the object is:

• Transparent
• Metallic
• Plastic
• Reflective
• Dark-colored

Environmental Conditions

Evaluate:

• Temperature
• Dust
• Humidity
• Water exposure
• Vibration

Mounting Space

Compact sensors fit smaller machines.

Response Time

High-speed production requires faster switching speeds.

Output Type

Common outputs include:

• PNP
• NPN
• Analog
• Digital
• Relay

Installation Tips

Proper installation improves performance.

• Align transmitters carefully.
• Keep lenses clean.
• Avoid direct sunlight whenever possible.
• Protect wiring from electrical noise.
• Verify operating voltage.
• Secure mounting brackets firmly.
• Test sensing distance before production begins.

Maintenance Best Practices

Routine maintenance extends sensor lifespan.

Clean Optical Surfaces

Remove dirt using lint-free cloths.

Check Alignment

Ensure transmitters and receivers remain properly positioned.

Inspect Wiring

Loose connections can create intermittent faults.

Verify Signal Strength

Many advanced sensors include LED status indicators.

Replace Damaged Components

Broken lenses should be replaced immediately.

Future Trends

Industrial sensing technology continues evolving rapidly.

Several innovations are reshaping photoelectric sensing.

Smart Sensors

Built-in diagnostics improve predictive maintenance.

IO-Link Communication

Digital connectivity simplifies configuration and monitoring.

AI Integration

Artificial intelligence enables adaptive sensing for complex production environments.

Miniaturization

Manufacturers continue producing increasingly compact sensor designs.

Higher Precision

Laser technologies continue improving micron-level accuracy.

Energy Efficiency

Modern designs consume significantly less power than earlier generations.

Comparison with Other Sensors

Sensor Type	Contact Required	Detection Range	Best For
Photoelectric	No	Long	General object detection
Inductive	No	Short	Metal objects
Capacitive	No	Short	Liquids and non-metals
Ultrasonic	No	Medium	Transparent objects
Mechanical Limit Switch	Yes	Contact	Physical positioning

Each sensor technology serves a different purpose, but photoelectric sensors provide one of the best combinations of speed, versatility, and long-range detection.

Common Troubleshooting Issues

If detection becomes unreliable, check the following:

• Dirty sensor lenses
• Misaligned transmitter and receiver
• Incorrect sensitivity settings
• Loose wiring
• Power supply fluctuations
• Damaged reflectors
• Strong ambient light interference

Most issues can be resolved through proper cleaning, alignment, and calibration.

Conclusion

Photoelectric sensors have become one of the most valuable technologies in industrial automation because they deliver fast, accurate, and non-contact object detection across countless applications. Their ability to detect products of various shapes, sizes, and materials while operating reliably in demanding environments makes them indispensable in manufacturing, logistics, packaging, automotive, pharmaceutical, food processing, and smart building systems.

Whether using through-beam, retro-reflective, diffuse, background suppression, or laser-based designs, these sensors significantly improve productivity, reduce downtime, and enhance operational safety. As industries continue embracing smart factories, IoT connectivity, artificial intelligence, and advanced automation, photoelectric sensing technology will remain at the heart of modern production systems.

By understanding how photoelectric sensors work, their various types, strengths, limitations, and practical applications, businesses can make informed decisions when selecting the right sensing solution for their automation needs. Investing in the appropriate sensor not only improves operational efficiency but also contributes to greater reliability, lower maintenance costs, and long-term manufacturing success.
